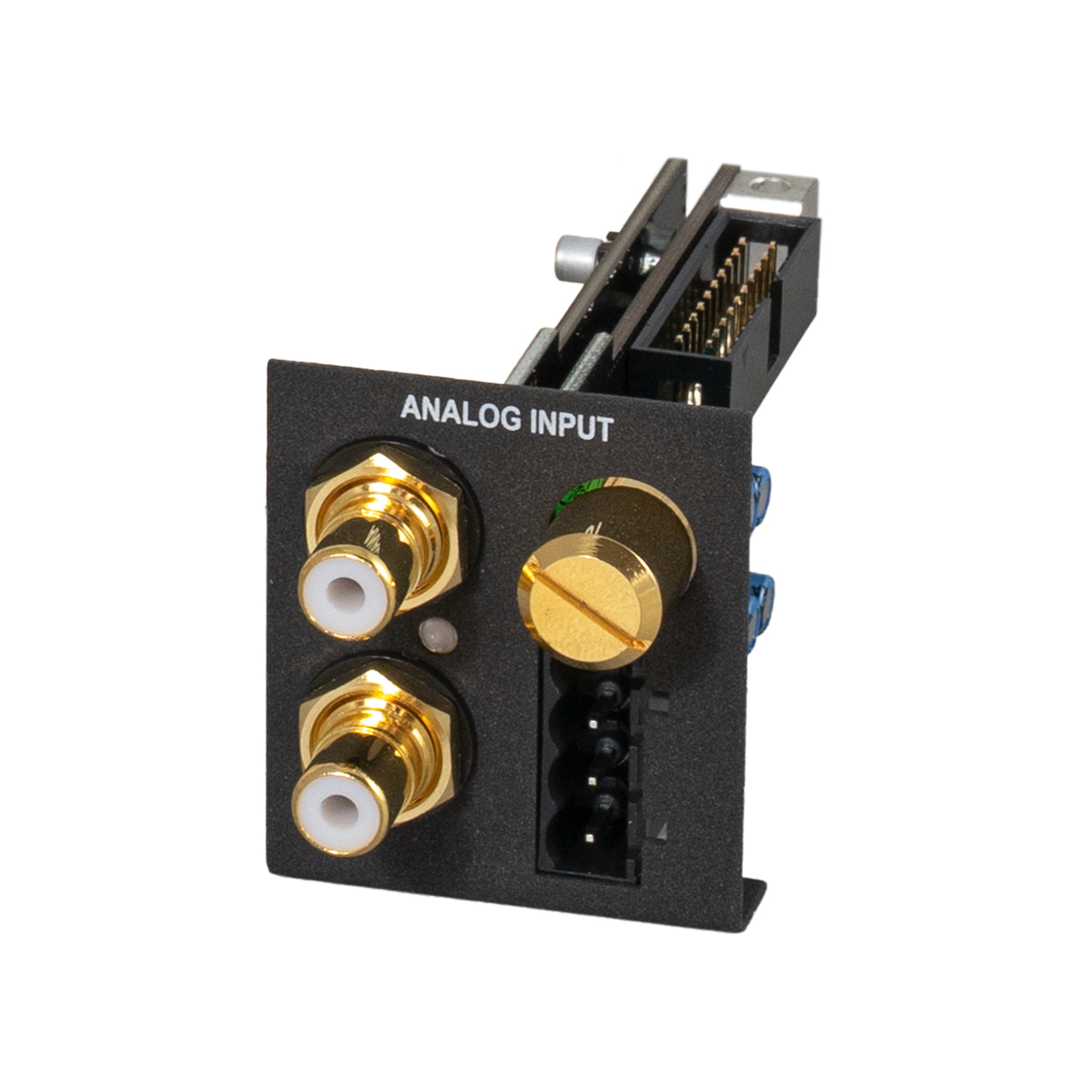

BRAX DSP – Input Analog AKM
Features
- Stereo input module with two analog RCA and highlevel inputs
- Continuously adjustable Input sensitivity from 1 to 8 Volts for RCA inputs and 3.5 to 30 Volts for highlevel inputs, ensuring precise adaptation to the output voltage of the connected signal source and best sound quality
- High-End 32 Bit, 2-channel A/D converter AKM AK5572EN with Velvet Sound Technology for optimum, distortion-free reproduction of the original sound
- Analog signal path with high-quality LME49720 Dual High Performance OpAmp from Texas Instruments
- Four software-configurable digital input filters with adjustable characteristics, allow for a tailored audio experience
- Highlevel inputs with ADEP.3 circuit to bypass radio diagnostic systems
- Auto turn-on function, allows to power on the DSP automatically via the highlevel inputs
Technical data
| Signal converter | AKM AK5572EN |
| Operational amplifier | TI LME49720 Dual High Performance |
| Sampling rate | 192 kHz |
| Frequency response | 10 Hz – 80 kHz |
| Signal-to-noise ratio (A-weighted) | 116 dB |
| Total harmonic distortion (THD+N) | < -104 dB (0.0006 %) |
| IM distortion (IMD) | < -94 dB (0.002 %) |
| Input sensitivity | RCA / Cinch: 1 – 8 Volts Highlevel: 3.5 – 30 Volts |
Compatibility
- BRAX DSP CORE model
Note: This module is only intended to be used for the initial installation of a BRAX DSP CORE model.
Scope of delivery
1 x analog input module with AKM converter
