Features

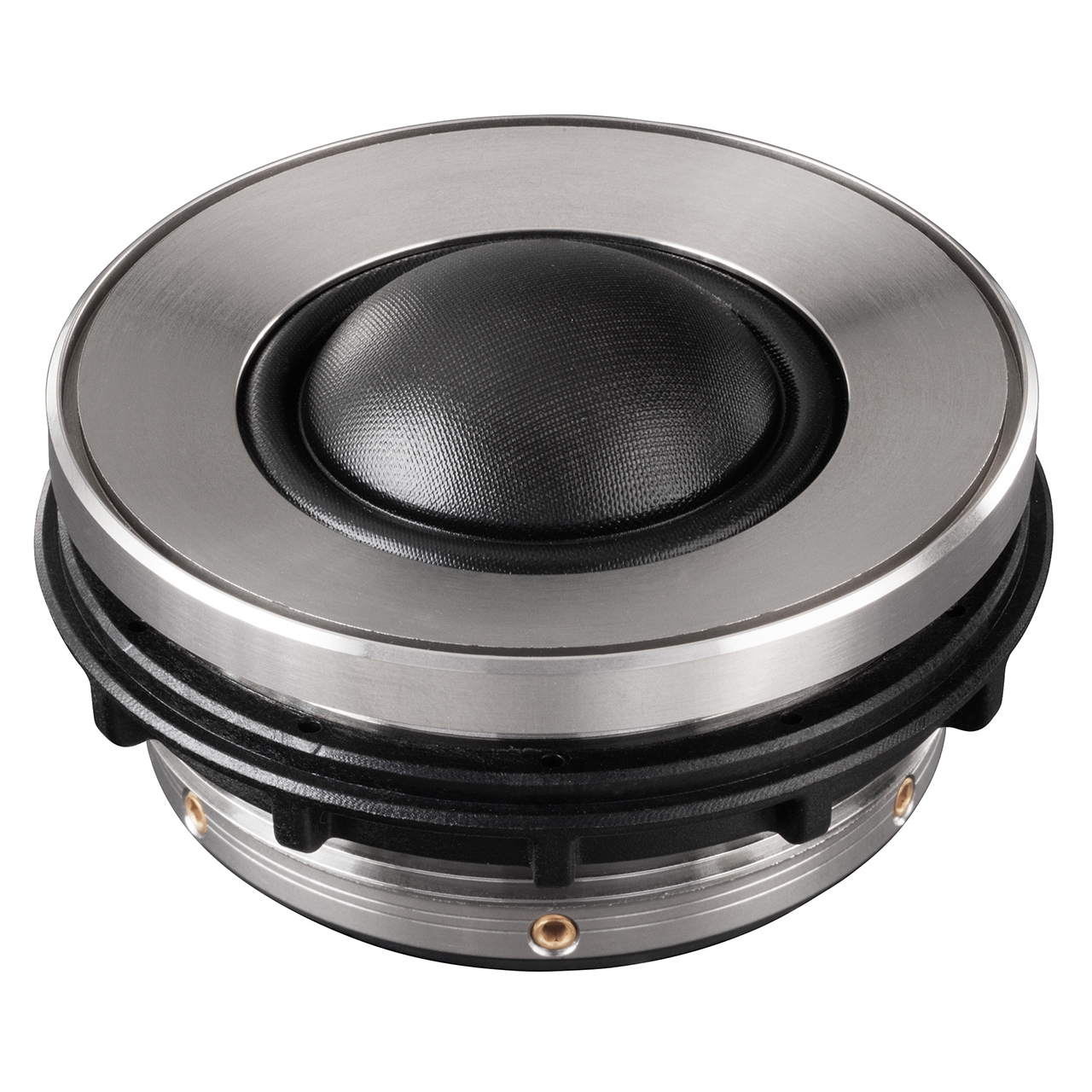

- High-End 28 mm silk dome – provides brilliant, smooth treble with visco-elastic Acronal coating on both sides
- Enhanced coupling volume – dampened with merino wool for low resonance and perfect sound quality
- Innovative inward-flanged design – superior frequency response thanks to improved sound dispersion
- Solid machined stainless steel housing – highly exclusive, extraordinary design with optimum heat dissipation
- High-efficiency neodymium magnet – with 8-port ventilation for ideal linearity of the magnetic flux ensuring lowest possible distortion
- Inward-facing stainless steel phase plug – prevents unwanted reflections within the coupling volume for focused sound reproduction
- Standardized mounting diameter – matches installation diameter of MATRIX ML50 PRO, GRAPHIC GL2 and GL1 MK2

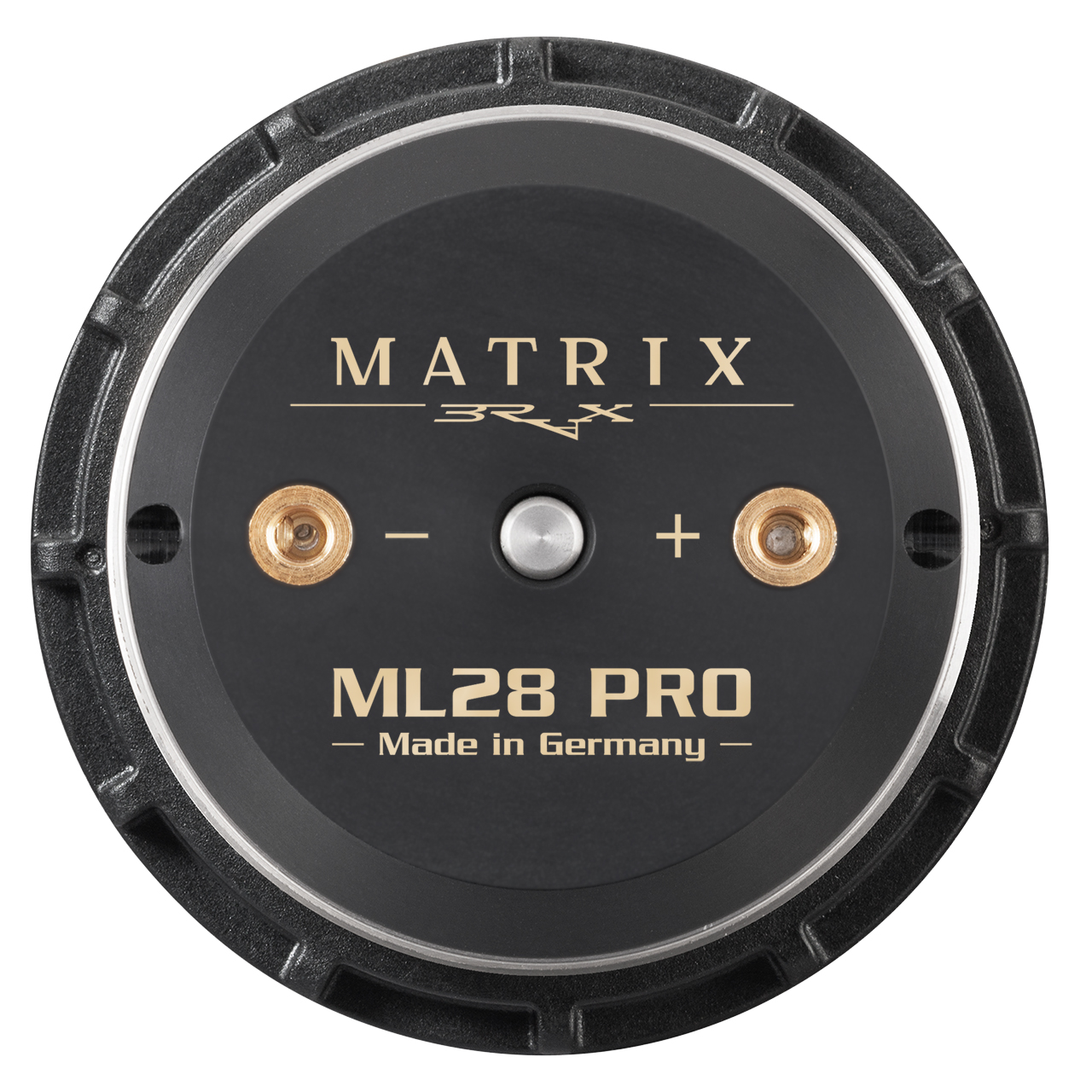

- 24 carat gold-plated terminals – guarantee maximum conductivity for optimal signal transmission

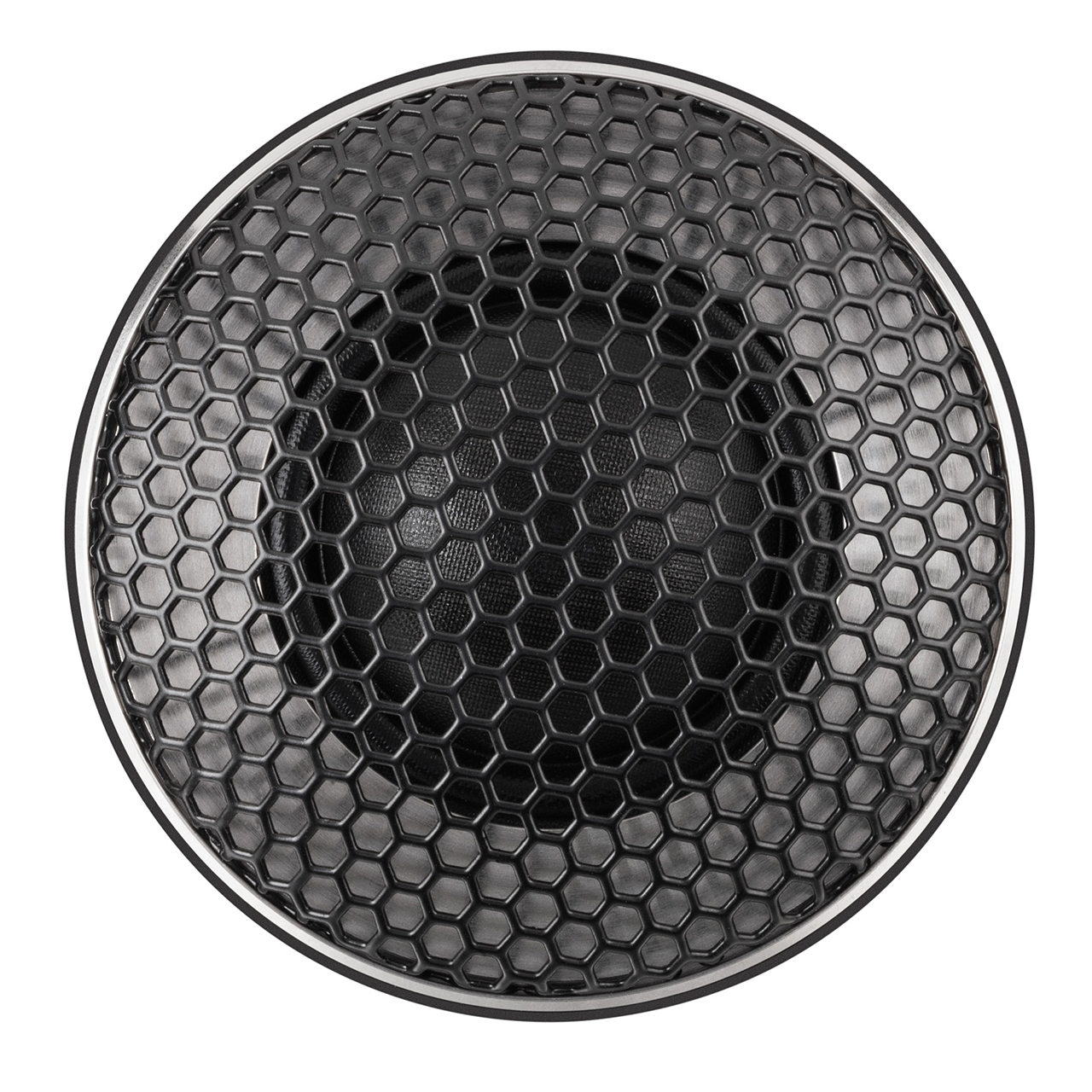

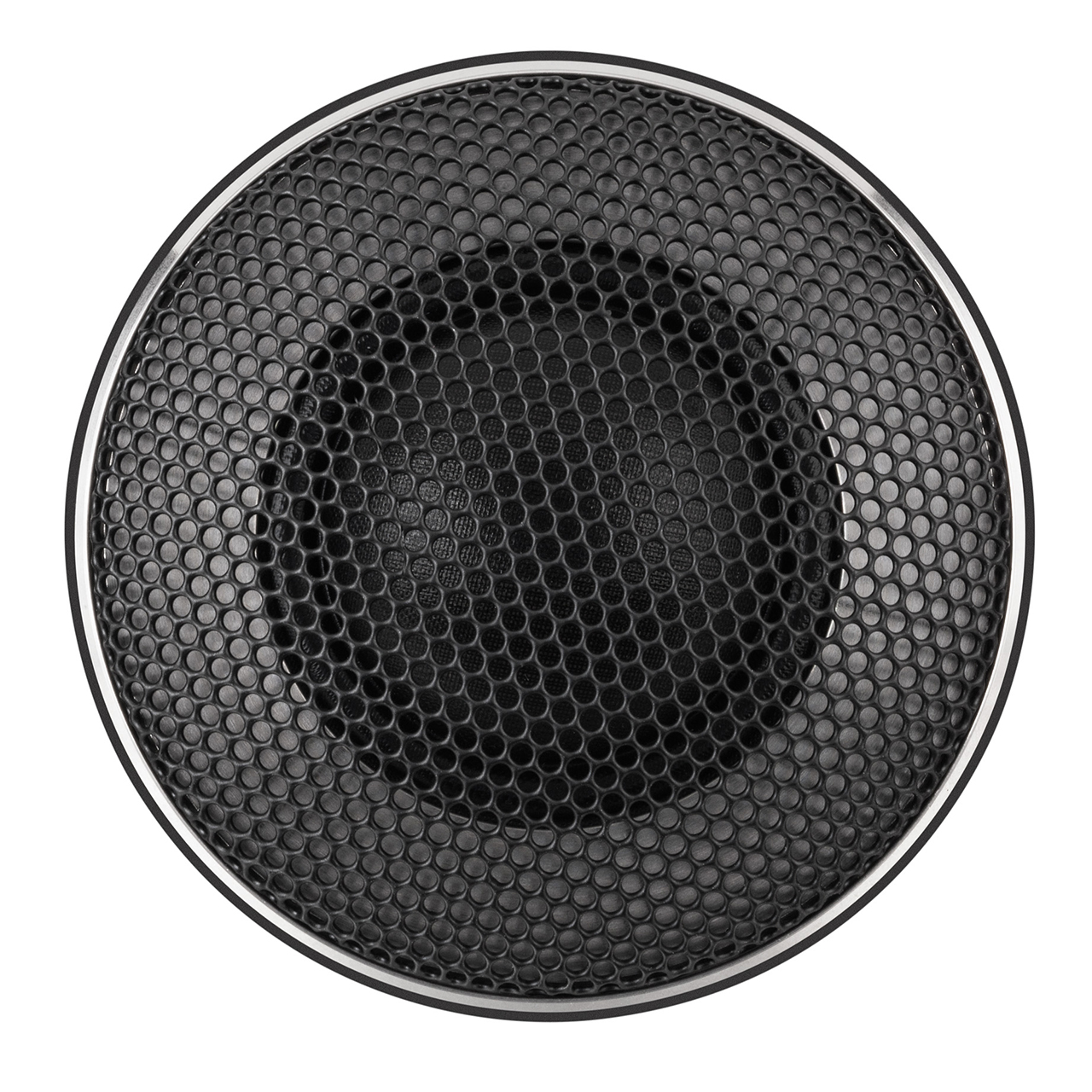

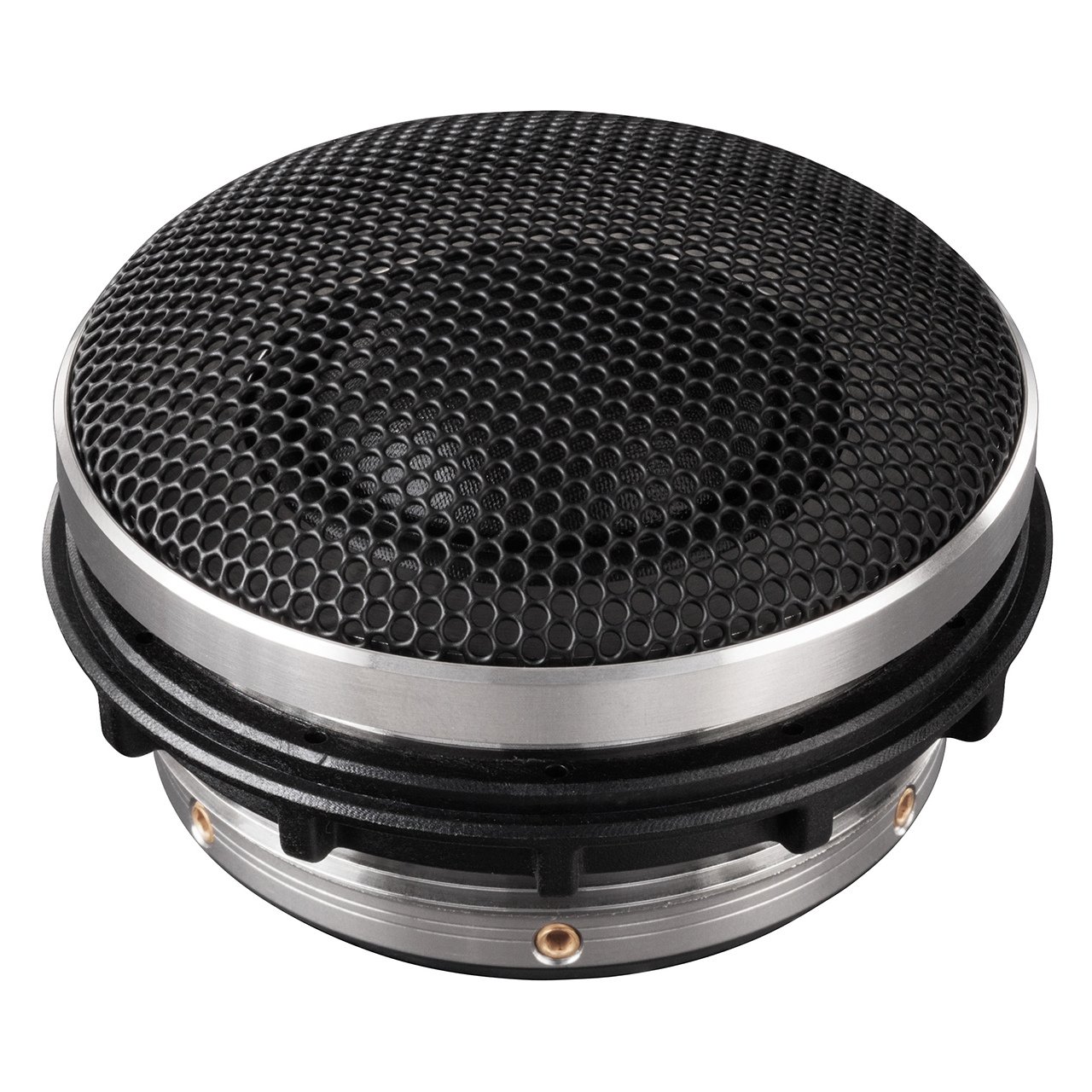

- Cover grilles included in two exclusive, swappable designs – optimized for perfect sound performance
Technical data
| Power RMS / max. | P | 120 / 170 Watts (highpass > 3,000 Hz at 12 dB/Oct.) |
| Impedance | Z | 4 Ω |
| DC resistance | Re | 3.4 Ω |
| Frequency response | 1,800 – 25,000 Hz | |
| Resonance frequency | Fs | 760 Hz |
| Sensitivity | SPL |
93 dB @ 2.83V / 1m |
| Voice coil diameter | ø | 28 mm / 1.10" |
| Cone area | Sd | 6.2 cm² |
| Moving mass | Mms | 0.32 g |
| Cone material | Silk dome with a visco-elastic Acronal coating on both sides | |
| Outer diameter | ø | 60 mm / 2.4" |
| Installation diameter | ø | 52 mm / 2.1" |
| Installation depth | 25 mm / 1.0" | |
| Recommended crossover frequencies for the highpass | ||
| Slope | Minimum crossover frequency | |
| 6 dB/Octave | 3,500 Hz | |
| 12 dB/Octave | > 2,500 Hz | |
| 24 dB/Octave | > 1,800 Hz | |
Scope of delivery
2 x High-End Tweeter BRAX MATRIX ML28 PRO
2 x Mounting ring
4 x Grille
1 x Allen key
1 x Certificate
1 x Data sheet
