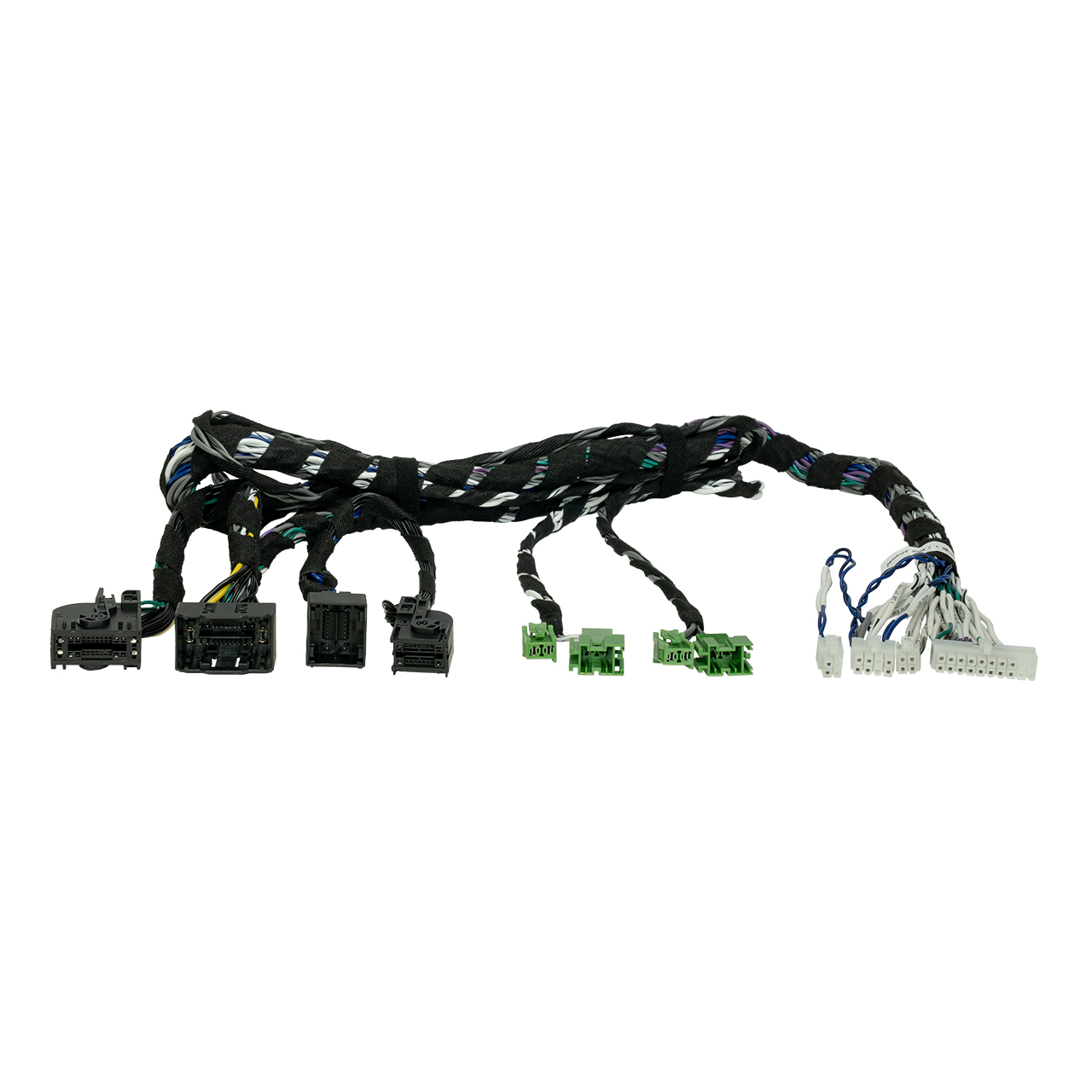

The 7-channel UPGRADE cable harness PP-MB 1.7MBUX Advanced enables an easy connection of a MATCH UP 8DSP amplifier with integrated Extension Card MEC ANALOG IN to selected Mercedes vehicles with Advanced sound system and MBUX Radio (Mercedes-Benz User Experience).
Features
- Plug & Play connectors for an easy connection of a MATCH UP 8DSP amplifier with integrated MEC ANALOG IN module
- MBUX-connection for connecting Mercedes radios with Mercedes-Benz User Experience (MBUX)
- Cable length 1.00 meter
Technical data
|
Cable length |
1.00 meter |
|
Connections |
1 x 20-pole MOLEX plug for the connection of the System Connector input of the UP 8DSP 1 x 8-pole MOLEX plug for the connection of the highlevel inputs E – F of the UP 8DSP 1 x 8-pole MOLEX plug for the connection of speaker outputs E – H of the UP 8DSP 1 x 4-pole MOLEX plug for the connection of the MEC ANALOG IN module 1 x 38-pole Mercedes system jack 1 x 38-pole Mercedes system plug |
Compatibility
- For connection of the MATCH UP 8DSP with ANALOG IN Extension Card
- Suitable for Mercedes vehicles with factory installed Advanced sound systems and Mercedes-Benz User Experience (MBUX)
- Further information about the vehicle compatibility can be found in our Connection Finder
Scope of delivery
1 x Plug & Play cable harness PP-MB 1.7MBUX Advanced
